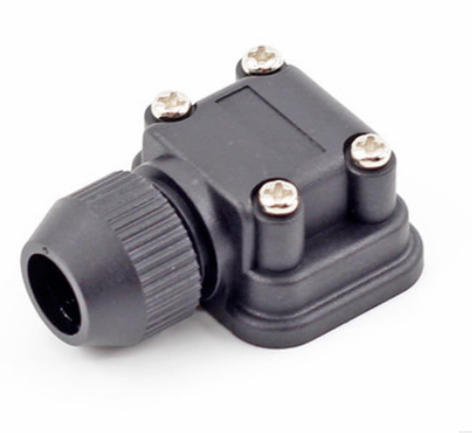

Zt-9p series
reference resources: https://www.te.com.cn/chn-zh/product-2174053-1.html
Ztec internal number zt-9p
Alternative te internal products: 2174053-1

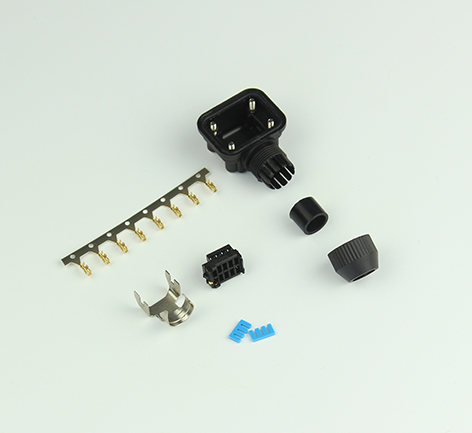

Connector product type: connector kit, connector kit
Type of connector and housing: plug, female, female
· joint alignment : no
· joint fixation: with
Type of joint fixation: screw
Product type characteristics
Connector product type: connector kit, connector kit
Type of connector and housing: plug, female, female
Connector system: line to motor, line to line
Type of insertion force: normal
· sealable : Yes
Connector and terminal termination: wire and cable
Structural characteristics
Number of Positions : 9
No. of rows: 2
Panel sealing ring with
Electrical characteristics
Operating Voltage (VAC): 10
Contact characteristics
Electrodeposited material for conductor terminal termination area: Nickel
Electroplating material of terminal contact part: Gold
Terminal positioning force in housing: with
Terminal rated current (maximum) (a): 1
Termination characteristics
Cable termination method: crimping
Mechanical accessories
· joint alignment : no
· joint fixation: with
Type of joint fixation: screw
Connector installation type: Motor
Shell characteristics
Center line (spacing): 2 mm [ 079 in ]
size
Row-to-Row Spacing : 2.4 mm [ .09 in ]
Usage environment
Operating temperature range: - 30 – 105 C [ - 22 – 221 f ]
Operation / Application
· shielding: Yes
Circuit application: signal
Industry standard
UL flame retardant grade: UL 94V-0
