IEEE 1394 is a stand-alone processor standard for system level interfaces between computers and intelligent devices (hard disks, drivers, optical drives, printers, scanners, etc.). SCSI is an intelligent universal interface standard. SCSI uses ASPI (Advanced SCSI programming interface) standard software interface to communicate with the SCSI adapter installed inside the computer. SCSI interface is a high-speed data transmission technology widely used in minicomputers. SCSI interface has the advantages of wide application range, multitasking, large bandwidth, low CPU utilization, and hot swap
The main body plastic is glass fiber reinforced glass polyester, which does not deform during high temperature welding. The shell material is glass polyester fiber, which has reliable durability. The metal clamp provides cable shielding grounding characteristics
Circuit bits: 6POS
Rated current: 2A
Rated voltage: 125VAC
Contact impedance: 10M Ω
Insulation withstand voltage: 500VAC for 1minute
Temperature range: - 40 ℃ to 85 ℃
Applicable specification: φ 6.6mm ～ φ 7.2mm
Shell quality: PBT resin (UL94V-0)/
Contact material: copper alloy / gold plating

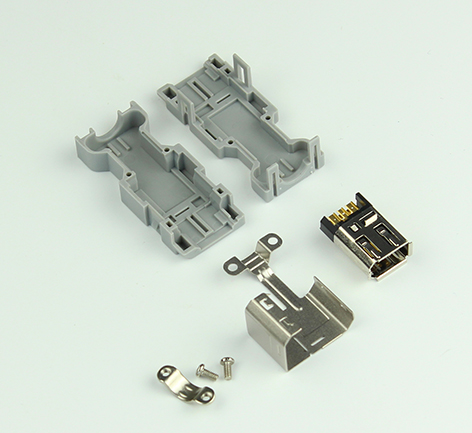

Plug: core + snap on housing

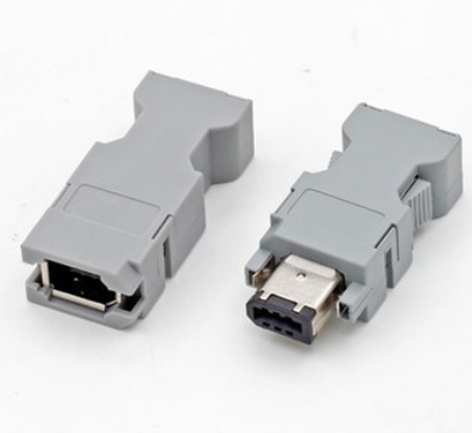

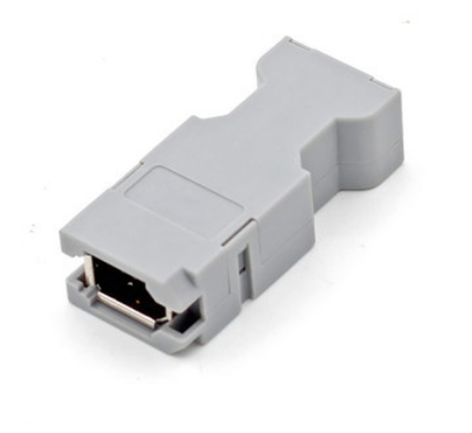

2.0 mm pitch 6-pole connector for wire connection of industrial machinery.
It can take into account the connection of thick wire and save space.
Comply with EMI / ESD.
It is suitable for all kinds of servo encoders.
Suitable for a variety of cable specifications from AWG 16 to Φ 28.
The original contact shape which pays attention to welding operation is adopted.
Application: jzsp-cmp9-1 Yaskawa servo side encoder connector (cn2), Delta, Mitsubishi, Yaskawa, Fuji servo driver connector
