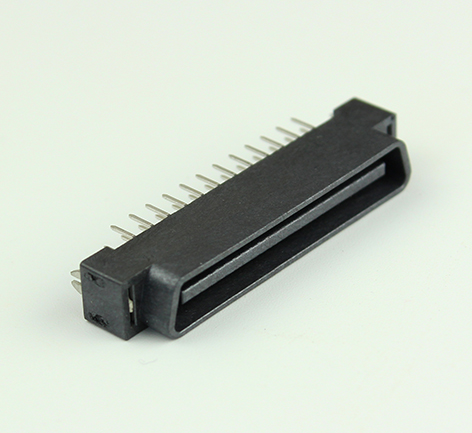

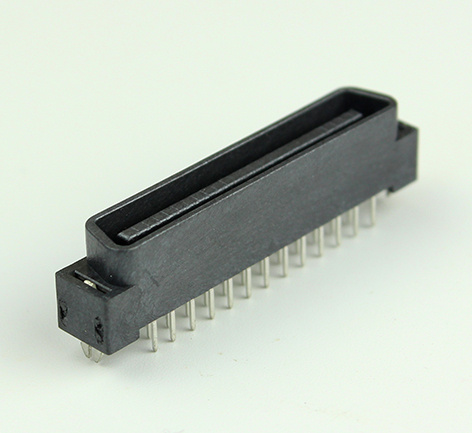

1.27mm 50pin male end plate to board in-line connector

1.27mm 50pin male end plate to board in-line connector 1.27mm 50pin male end plate to board in-line connector
1.27mm 50pin male end plate to board in-line connector 1.27mm 50pin male end plate to board in-line connector

Detail

Back

Zt02sg series


Ztec internal number: zt02-sg020s

Alternative to te internal products:

PCB connector assembly type: PCB mounting connector

PCB installation direction: vertical

Connector system: board to board

Number of Positions : 20

Center line (spacing): 1.27 mm [0.05 in]


Product type characteristics



PCB connector assembly type: PCB mounting connector

Connector system: board to board

· sealable   no

Connector and terminal termination: printed circuit board


Structural characteristics



Stackable: no

Number of rows: 1

PCB installation direction: vertical

Number of Positions : 20


Electrical characteristics



Operating Voltage (VAC): 250

Insulation resistance   (m Ω): 1


Subject characteristics



Connector shape: Standard

PCB retention characteristics electroplating materials: nickel backing tin plating

PCB retention material: Brass


Contact characteristics



Terminal base material: phosphor bronze

PCB terminal termination area electroplating material: Tin

Terminal base plate material: Nickel

Terminal shape and construction: single fork

Thickness of electroplating material in PCB terminal termination area: 1 μ m [39.4 μ in]

Electroplating material of terminal contact part: Gold

Thickness of electroplating material in terminal joint area:   m   [  7.9   in  ]

Terminal type: Male

Terminal rated current (maximum)   (a): 1

Contact length of terminal: 6.6 mm [0.259 in]

Terminal layout: in-line



Termination characteristics



3.1   mm   [  122   in  ]

PCB termination method: through hole welding


Mechanical accessories



Fixed type of PCB installation  : fixed feet

· joint alignment   with

· joint alignment type  : polarization, polarization

PCB installation and fixation: with

Assembly alignment of PCB: without

Connector mounting type  : board mounting

Usage environment



Operating temperature range: - 55 – 85   C   [  - 67 – 185   f  ]
