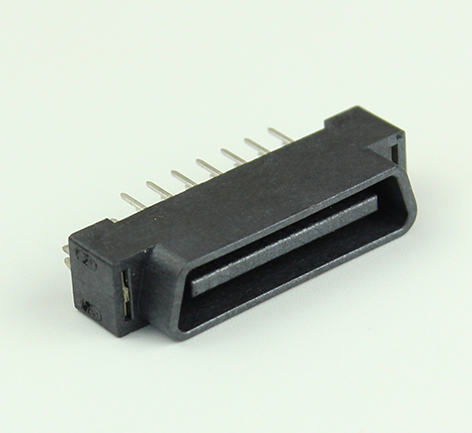

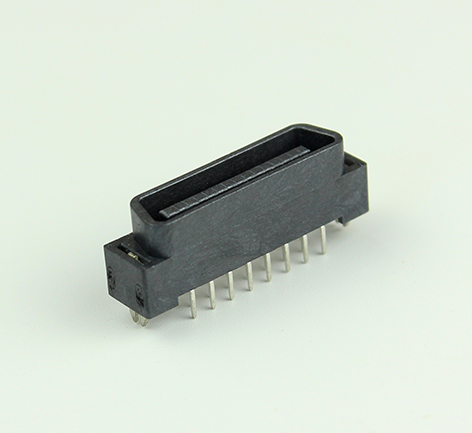

Zt02sg series
Ztec internal number: zt02-sg020s
Alternative to te internal products:
PCB connector assembly type: PCB mounting connector
PCB installation direction: vertical
Connector system: board to board
Number of Positions : 20
Center line (spacing): 1.27 mm [0.05 in]
Product type characteristics
PCB connector assembly type: PCB mounting connector
Connector system: board to board
· sealable no
Connector and terminal termination: printed circuit board
Structural characteristics
Stackable: no
Number of rows: 1
PCB installation direction: vertical
Number of Positions : 20
Electrical characteristics
Operating Voltage (VAC): 250
Insulation resistance (m Ω): 1
Subject characteristics
Connector shape: Standard
PCB retention characteristics electroplating materials: nickel backing tin plating
PCB retention material: Brass
Contact characteristics
Terminal base material: phosphor bronze
PCB terminal termination area electroplating material: Tin
Terminal base plate material: Nickel
Terminal shape and construction: single fork
Thickness of electroplating material in PCB terminal termination area: 1 μ m [39.4 μ in]
Electroplating material of terminal contact part: Gold
Thickness of electroplating material in terminal joint area: m [ 7.9 in ]
Terminal type: Male
Terminal rated current (maximum) (a): 1
Contact length of terminal: 6.6 mm [0.259 in]
Terminal layout: in-line
Termination characteristics
3.1 mm [ 122 in ]
PCB termination method: through hole welding
Mechanical accessories
Fixed type of PCB installation : fixed feet
· joint alignment with
· joint alignment type : polarization, polarization
PCB installation and fixation: with
Assembly alignment of PCB: without
Connector mounting type : board mounting
Usage environment
Operating temperature range: - 55 – 85 C [ - 67 – 185 f ]
